Crossed Micrometer Scales S16 1mm in 0.01mm divisions

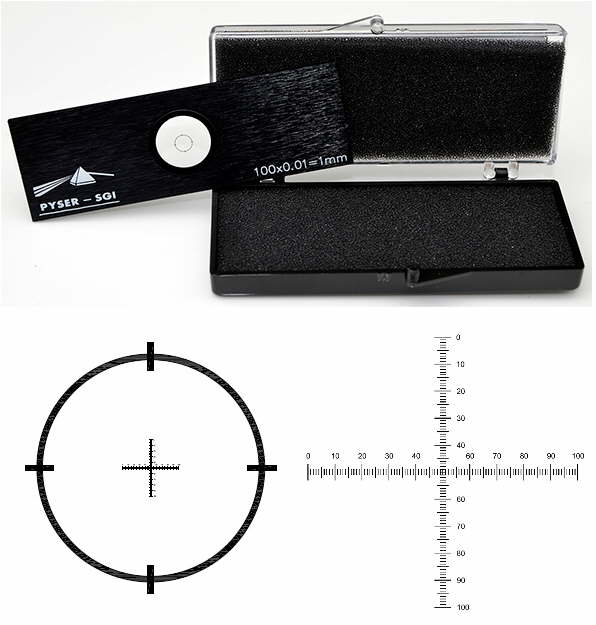

S16 Stage Micrometer, Crossed Scales 1mm/0.01mm. Transmitted light stage micrometer with crossed scales, each 1mm subdivided into 0.01mm divisions

SKU: 02A00429 Category: Brand:

These stage reticles are intended for the routine calibration of eyepiece patterns, particularly when alternating between objectives on one microscope or when using the same reticle in different microscopes. Their robust construction makes them ideal for student use and for instructional purposes. The scale or grid is centred on a glass disc mounted in a black anodised aluminium slide 76mm x25mm x 1.5mm thick. Line width: 0.0015mm Accuracy (overall): <0.001mm. The 'S' range do not have a unique serial number identification - See PS range for products with engraved serial number
