Micrometer S22, Vertical Scale 2mm in 0.01mm divisions

$351.00

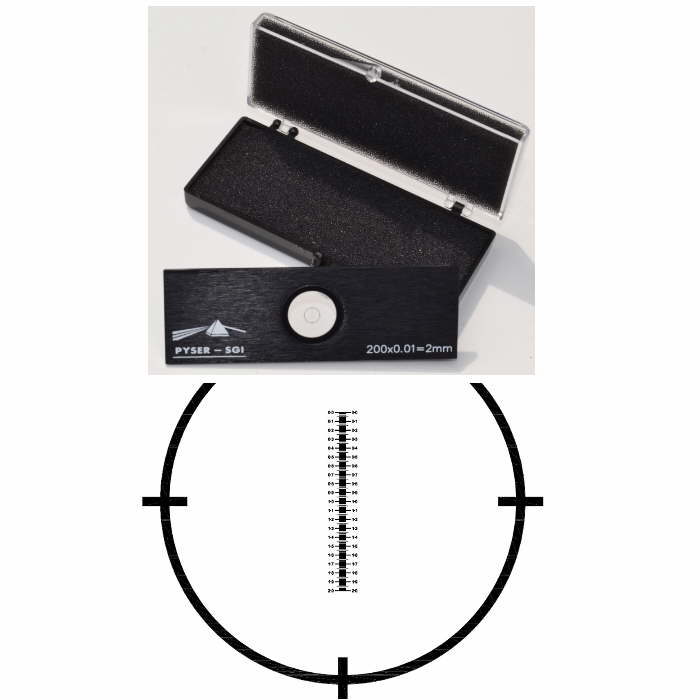

S22 Transmitted light Stage Micrometer, with vertical 2mm scale subdivided into 0.01mm divisions

SKU: 02A00411 Category: Brand:

These stage reticles are intended for the routine calibration of eyepiece patterns, particularly when alternating between objectives on one microscope or when using the same reticle in different microscopes. Their robust construction makes them ideal for student use and for instructional purposes. The scale or grid is centred on a glass disc mounted in a black anodised aluminium slide 76mm x 25mm x 1.5mm thick. Line width: 0.0025mm Accuracy (overall): <0.0015mm S22 Micrometer Scale 2mm in 0.01mm divisions
