Product Description

The WELL 3400 Precision Horizontal Diamond Wire Saw produces smooth, sharp-edged surfaces on virtually any material. The ‘cutting tool’ is a stainless steel wire with diamonds embedded into the surface of the wire using a patented embedding process, ensures maximum cutting capability and long wire life. The wire is wound onto a drum mounted onto a precision reciprocating motor.

Although it may seem like a contradiction, the Saws produce a non-destructive, nondeforming cut and/or slice. This holds true for both homogeneous materials and for bonded materials of vastly different compositional properties.

Metals, plastics, quartz, glass, graphite and ceramics are just some of the many natural and synthetic materials that can be successfully cut in research and development, quality control, failure analysis and production. The precision cut and resulting smooth finish often eliminate or greatly reduce polishing time for parts that previously required thorough polishing.

In addition to the industrial applications, these saws are also used in applications within:

  • Metalography
  • Geology
  • Archeology and paleontology
  • Criminology and forensics
  • Biology
  • Pathology
  • Histology
  • Anatomy and dentistry

Kit Contents:

  • 1x WELL Horizontal Diamond Wire Saw model 3400
  • 1x Standard sample holder with 5 ceramic pads Ø 30mm
  • 1x Drum with 10 meters of diamond wire (Ø0.10, Ø0.17, Ø0.22 or Ø0.3mm diameter, to be specified at ordering)
  • 1x Cutting liquid concentrate 5% 500ml
  • 1x Plastic liquid container
  • 1x Support for liquid container
  • 1x Toolbox
  • 1x Soft Touch Pen
  • 1x LED Lamp with Clip-on
  • 1x Power Cable

Features & Specifications

Design: Horizontal
Cutting feed: Counterweight (+ 80g)
Electric motor: 36Vdc – 8A – 200W
WiFi: Ready, WiFi B/G
Machine weight (without accessories): 11.3kg
Overall dimensions: L x B x H; 440 x 285 x 290mm

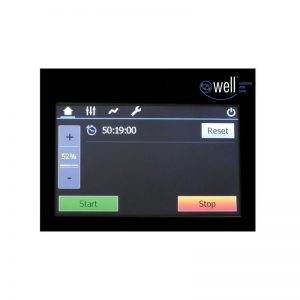

Machine control: 600 x 480 pixels, tactile resistive screen
Drum diameter: 80mm
Pulleys diameter: 80mm
CE Certification: CE
USB Output: 5V / 400mA
Possible wire diameter: 0.10 – 0.30mm
Wire length:
10m
Wire speed: 0 – 3.6 m/s
Wire tension:
2kg
Max. sample weight: 200g
Max. sample dimension: 50 x 50 x 50mm – Ø 50mm
Warranty: 12 months
